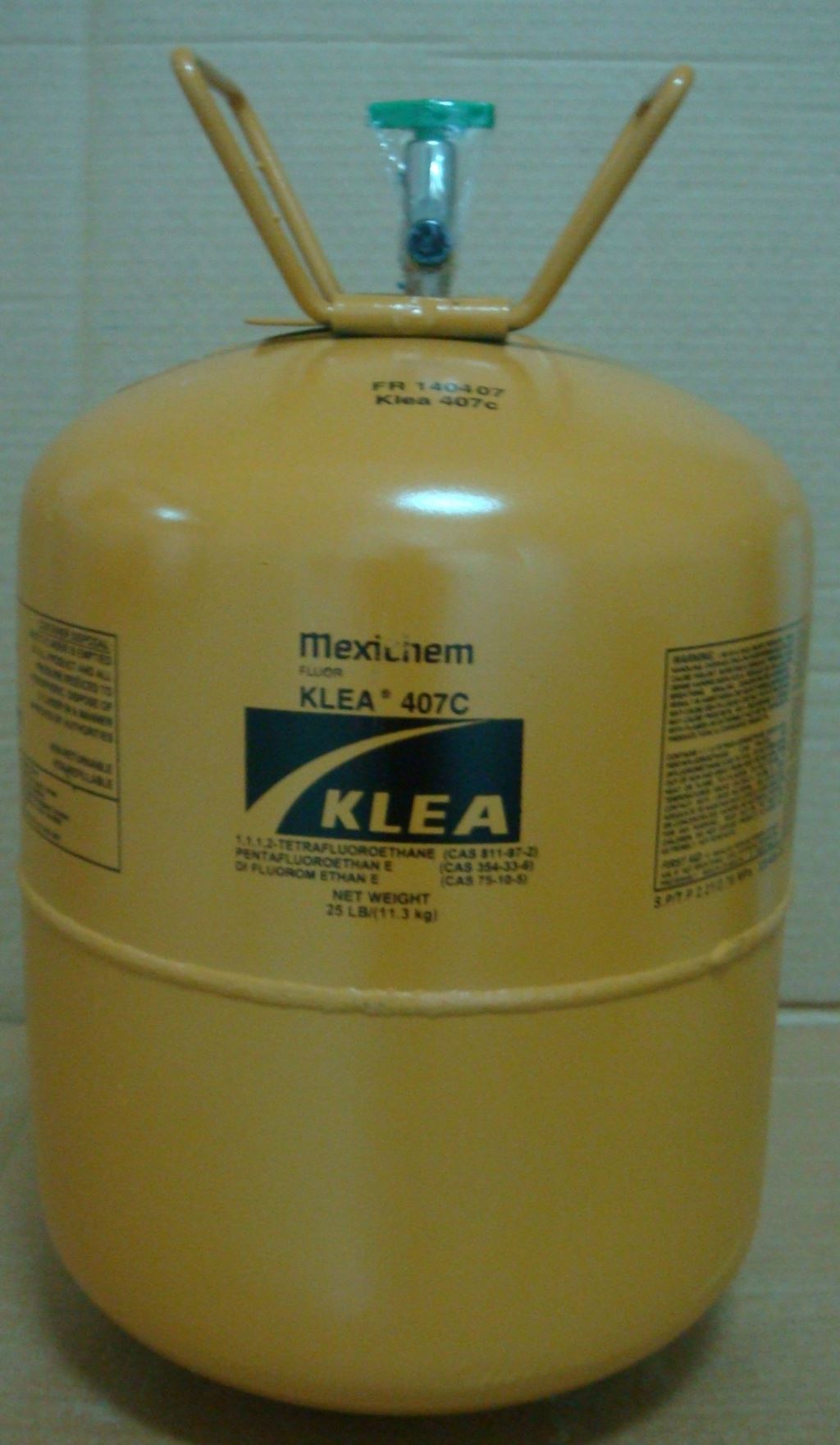

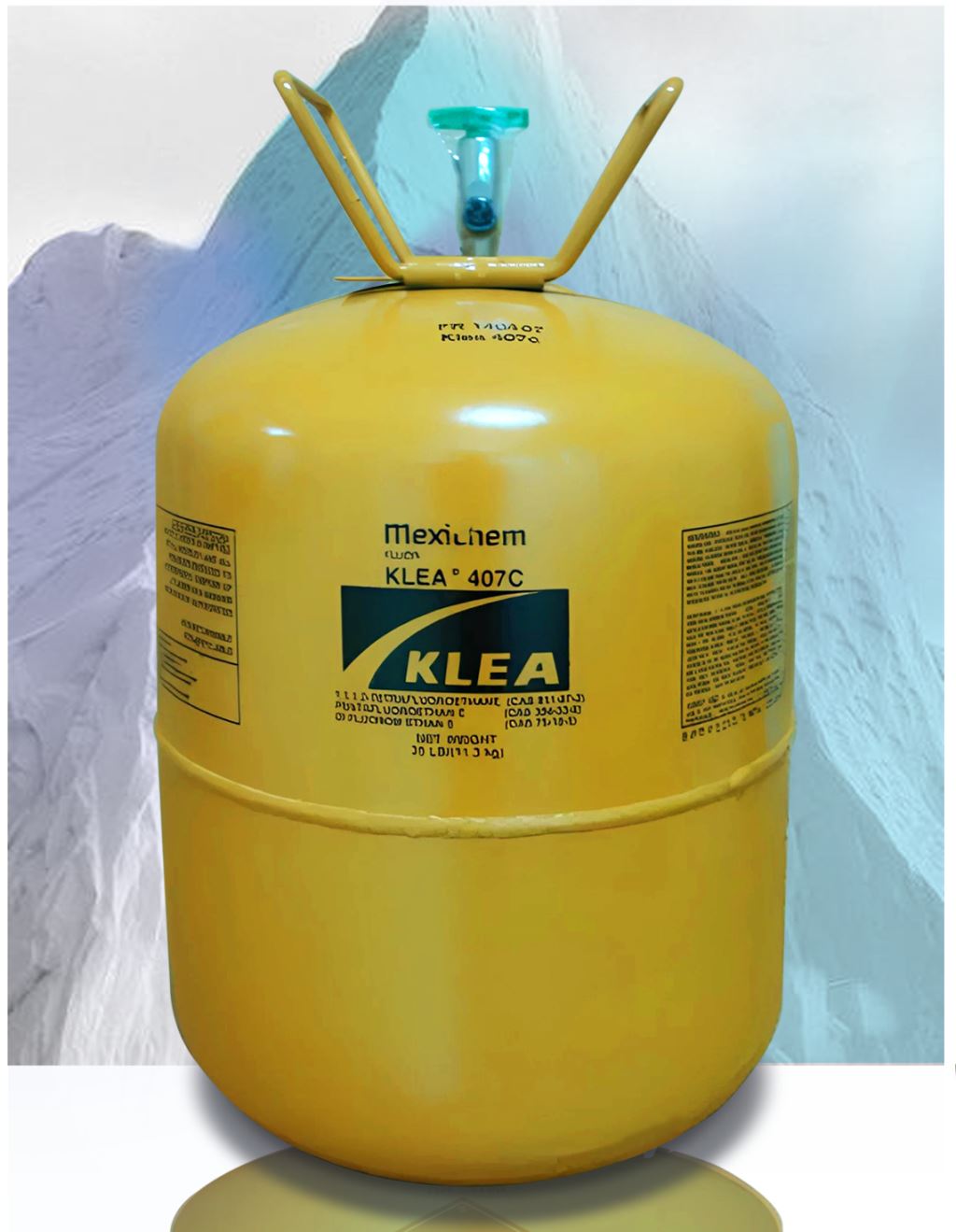

KLEA®407C

商標 Trademark：KLEA

簡介 Introduction：

所有R-407系列製冷劑均基於三種HFC製冷劑R-32，R-125和R-134a的混合物。 R-407C的配方與現有的HCFC製冷劑R-22非常匹配，可用於空調，製冷和製冷應用，並且是商業規模使用的首批R-22替代品。適用於翻新和原始設備使用。 KLEA®407C符合2030年以後的GWP要求，這是針對工業和商業製冷的歐盟F-氣體法規。
組成（wt％）R-32 / R-125 / R-134a = 23/25/52
請注意，並非所有產品在所有市場上都可用。

All of the R-407-series refrigerants are based on blends of the three HFC refrigerants R-32, R-125 and R-134a. R-407C has been formulated as a good match to the existing HCFC refrigerant R-22 for use in air conditioning, chilling and refrigeration applications and is the first of the R-22 alternatives to be used on a commercial scale. Suitable for retrofit and original equipment usage. KLEA®407C meets the GWP requirements beyond 2030 under the EU F-Gas Regulations for industrial and commercial refrigeration.
Composition (wt%) R-32/R-125/R-134a = 23/25/52
Please note that not all products are available in all markets.

⇒KLEA®407C 安全資料表下載 SDS Download

KLEA®407C 物理性質 Physical Properties

屬性 Property	國際單位制 S.I.Units	英制單位 British Units
沸點 Boiling Point	-44.0 (°C @ 1 atm)	-47.2 (°F @ 14.7 psia)
露點 Dew Point	-36.8 (°C @ 1 atm)	-34.2 (°F @ 14.7 psia)
蒸發流逝 Evaporator Glide	4.8 (°C @ 1 atm)	8.6 (°F @ 14.7 psia)
泡點壓力 Bubble Point Pressure	11.9 (bara @ 25°C)	172.6 (psia @ 70°F)
臨界溫度 Critical Temperature	86.0 (°C)	186.8 (°F)
潛熱蒸發 Latent Heat Vaporisation	193.9 (kJ/kg @ 25°C)	83.4 (Btu/lb @ 70°F)
熱膨脹係數 Coeff. Vol. Therm. Exp.	0.0037 (K^-1 0-20°C)	0.0019 (°F^-1 40-80°F)
飽和蒸氣密度 Saturated Vapour Density	4.57 (kg/m³ @ nBpt)	0.285 (lb/cuft @ nBpt)

KLEA®407C 規格 Specification

特性項目 PROPERTIES TEST	驗收值 ACCEPTANCE VALUES
外觀 Appearance	清澈無色液化氣 Clear, colourless liquefied gas.
純度 Purity % by weight	99.9% Minimum
32 Content % by weight	23.0 ± 1.0
125 Content % by weight	25.0 ± 1.0
134a Content % by weight	52.0 ± 1.0
不飽和雜質 Unsaturated Impurities (ppm by weight)	40 maximum
酸度 Acidity ppm by weight	1 ppm max
含水量 Water content ppm by weight	10 ppm Maximum
鹵化物 Halides ppm by weight	3 ppm Maximum
蒸發殘留物 Evaporation Residue by weight	10 ppm w/w Maximum
不可吸收的氣體Non absorbable gases % by volume (vapour phase)	1.5% Maximum
