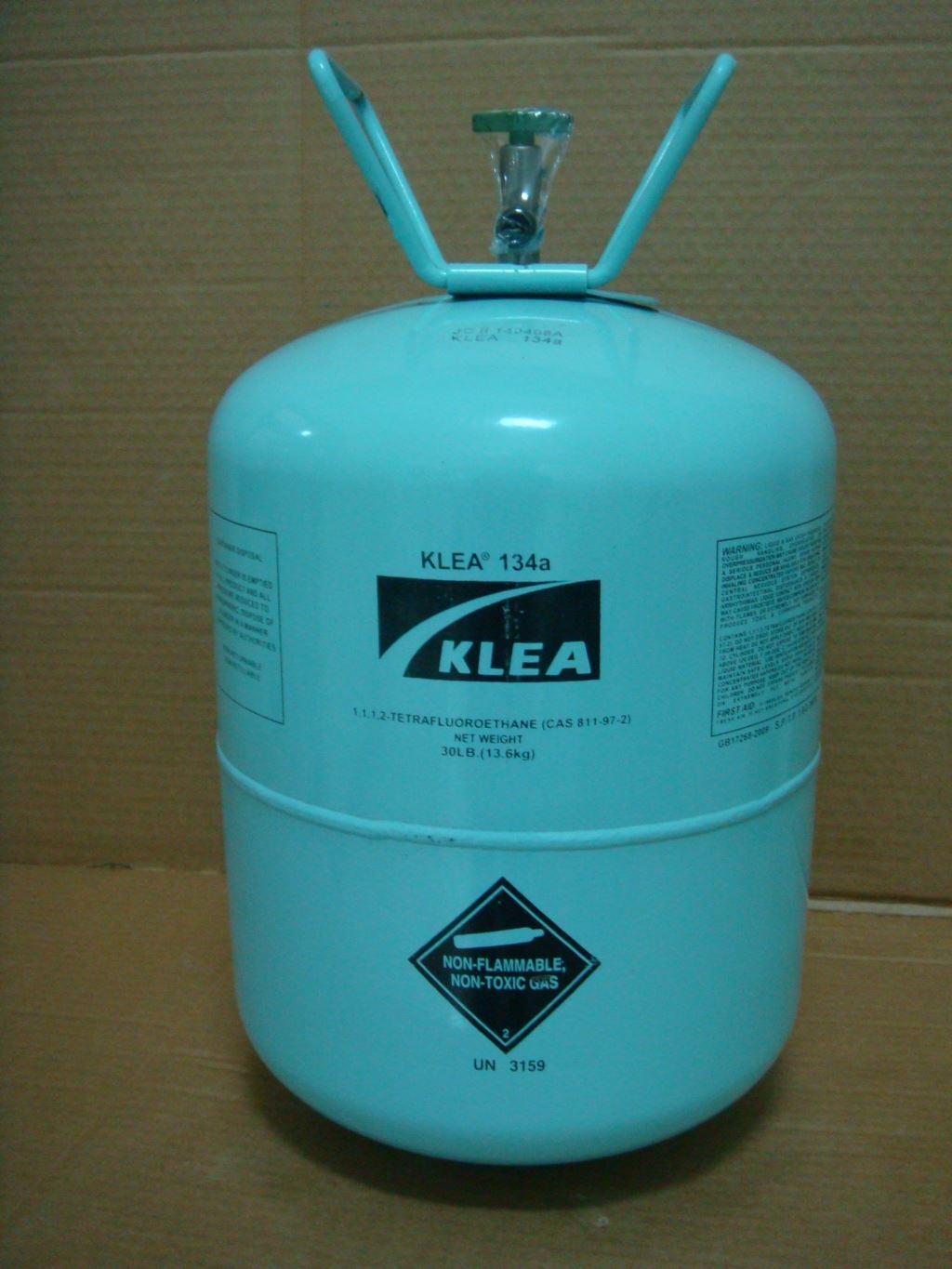

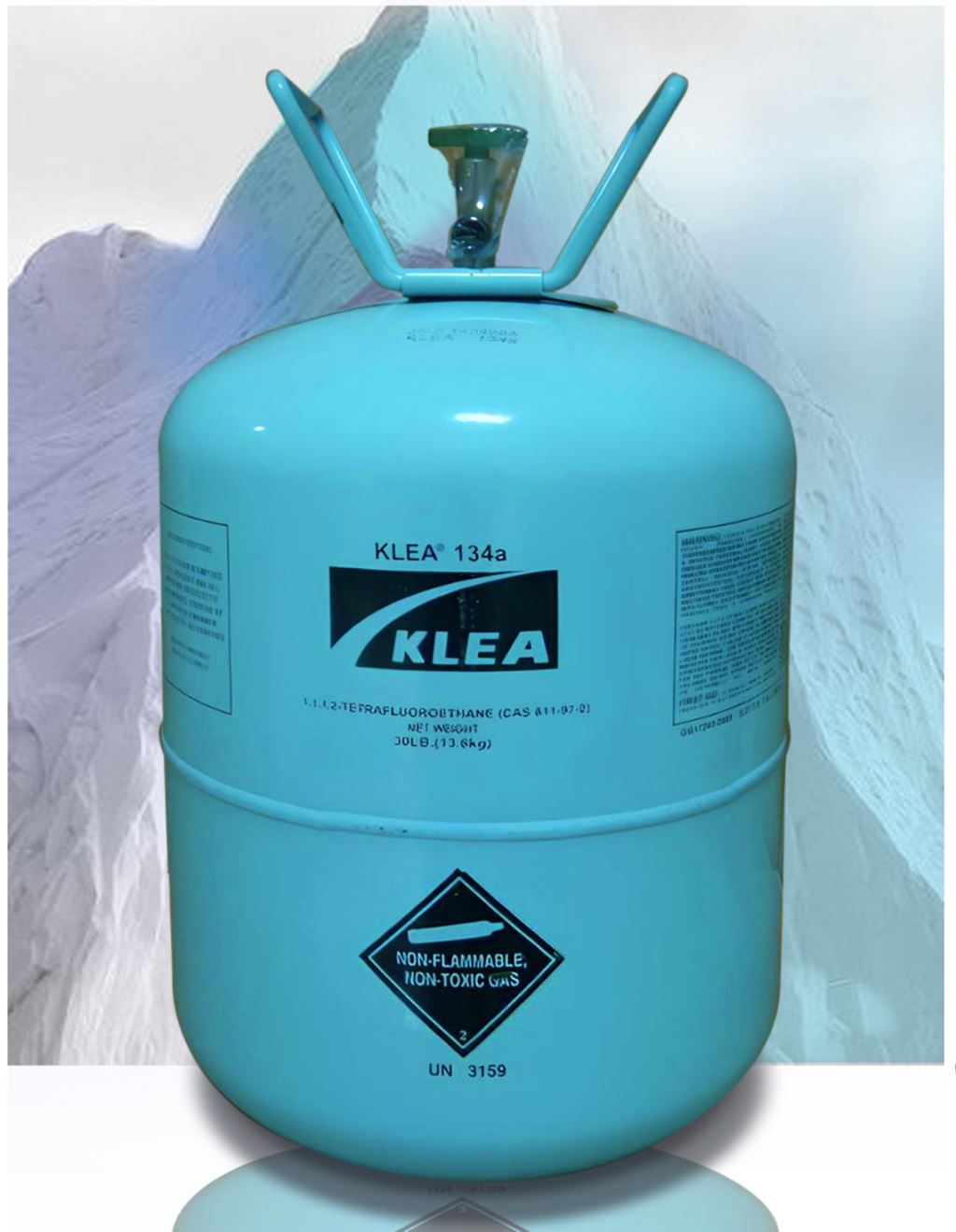

KLEA®134a

商標 Trademark：KLEA

簡介 Introduction：

在大部分改裝和新設備的應用範圍中，R-134a被公認為最適合R-12的替代產品。與R-12在空調，高溫和中溫使用方面非常適合。它可用於超市的混合串聯系統，並用於某些HFO混合物中，以降低易燃性和提高效率。
請注意，並非所有產品在所有市場上都可用。

Widely accepted as the most appropriate alternative for R-12 over the majority of the application range for both retrofit and new equipment. A very good match to R-12 for air conditioning, high and medium temperature usage. It can be used in hybrid cascade systems for supermarkets and is being used in some of the HFO blends in order to bring lower flammability and better efficiency.
Please note that not all products are available in all markets.

⇒KLEA®134a 安全資料表下載 SDS Download

KLEA®134a 物理性質Physical Properties

屬性 Property	國際單位制 S.I.Units	英制單位 British Units
沸點 Boiling Point	-26.7 (°C @ 1 atm)	-14.93 (°F @ 14.7 psia)
蒸汽壓 Vapour Pressure	6.653 (bara @25°C)	96.49 (psia@70°F)
臨界溫度 Critical Temperature	101.03 (°C)	213.9 (°F)
臨界壓力 Critical Pressure	40.6 (bara)	588.9 (psia)
潛熱蒸發 Latent Heat Vaporisation	216.8 (kJ/kg @nBpt)	93.21 (Btu/lb @ 70°F)
熱膨脹係數 Coeff. Vol. Therm. Exp	0.002766 (K^-1 0-20°C)	0.001606 (°F^-1 40-80°F)
飽和蒸氣密度 Saturated Vapour Density	5.229(Kg/m³@nBpt)	0.326 (lb/cuft @nBpt)

KLEA®134a 規格 Specification

測試項目 TEST ITEMS	驗收值 ACCEPTANCE VALUES
外觀 Appearance	清澈無色液化氣 Clear colourless liquefied gas
純度 Purity (% by Weight)	99.9 minimum ( including HFC 134 )
揮發性雜質，包括其他製冷劑 Volatile impurities, including othe refrigerants(% by weight )	0.1 maximum
不飽和雜質 Unsaturated Impurities (ppm by weight)	40 maximum
含水量 Water content (ppm by weight)	10 maximum
蒸發殘留物 Evaporation residue (ppm by weight)	10 maximum
鹵化物 Halide	通過（無可見濁度，通常氯化物<3ppm) Pass (No visible turbidity, usually Chloride <3ppm)
不可吸收的氣體 Non-absorbable gases (% by volume in vapor phase)	1.5 maximum
酸度 Acidity (ppm by weight as HCl)	1.0 maximum
顆粒/固體 Particulates / Solids	外觀乾淨通過 Visually clean to pass
