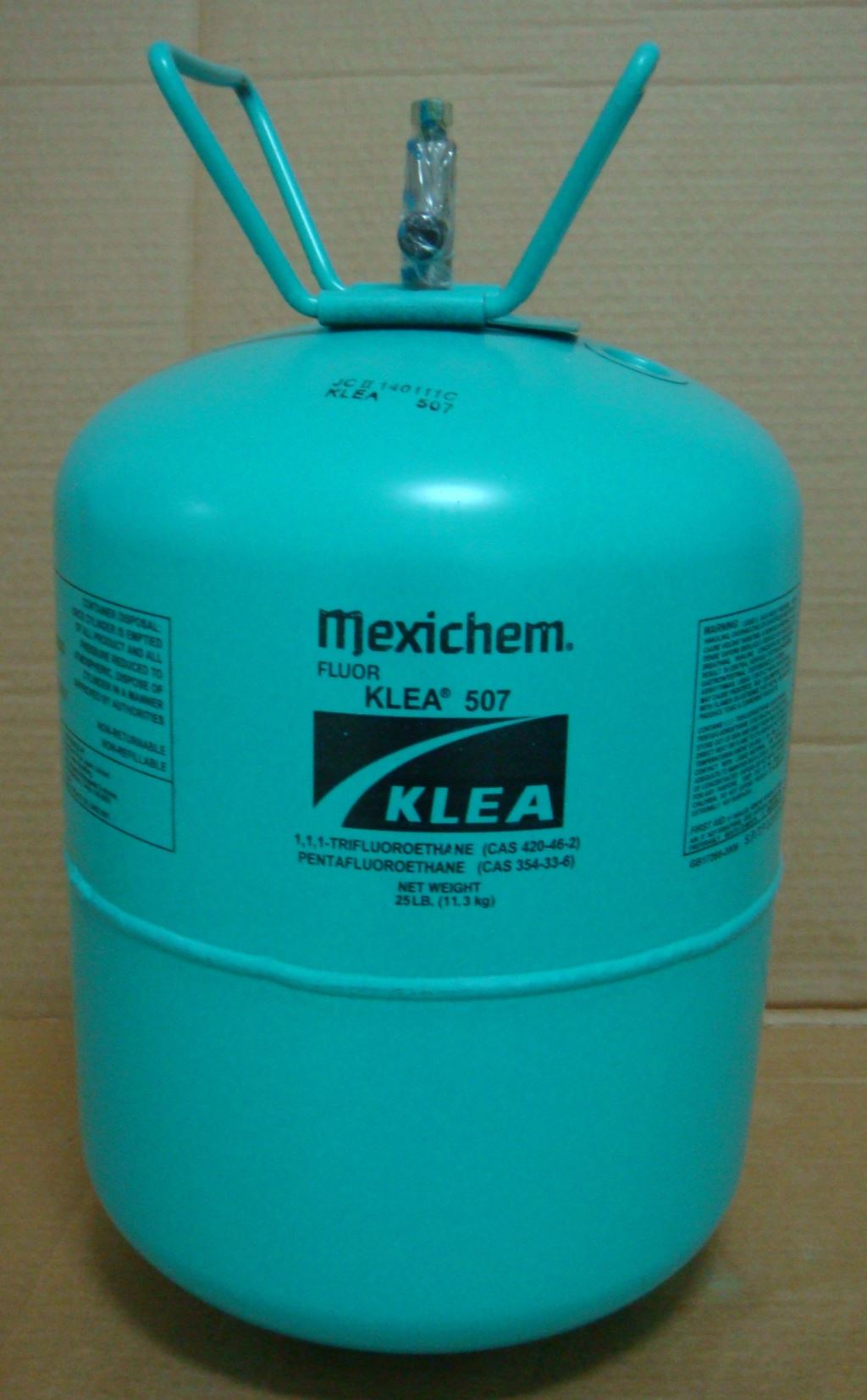

KLEA®507

Trademark：KLEA

Introduction：

A viable alternative to R-22 and R-502, comprising R-125 and R-143a, for new and retrofit applications. KLEA®507 offers good benefits in flooded systems. For a reduced GWP alternative, KLEA®407A is a good refrigerant in supermarket and other commercial applications.
Composition (wt%) R-125/R-143a = 50/50
Please note that not all products are available in all markets.

⇒KLEA®507 SDS Download

KLEA®507 Physical Properties

Property	S.I.Units	British Units
Bubble Point	-47.48 (°C @ 1 atm)	-53.46 (°F @ 14.7 psia)
Dew Point	-47.47 (°C @ 1 atm)	-53.45 (°F @ 14.7 psia)
Evaporator Glide	0.0 (°C)	0.0 (°F @ 14.7 psia)
Bubble Point Pressure	12.89 (bara 25°C)	1865 (psia 70°F)
Critical Temperature	70.2 (°C)	158.4 (°F)
Latent Heat Vaporisation	140.1 (kJ/kg @ 25°C)	60.2 (Btu/lb @ 70°F)
Coeff. Vol. Therm. Exp.	0.003876 (K^-1 0-20°C)	0.002321 (°F^-1 40-80 °F)
Saturated Vapour Density	5.528 (kg/m³ @nBpt)	0.345 (lb/cuft @nBpt)

KLEA®507 Specification

PROPERTIES TEST	ACCEPTANCE VALUES
Appearance	Clear, colourless liquefied gas.
Purity % by weight	99.9% Minimum
125 Content % by weight	50.5 ± 1.0
143a Content % by weight	49.5 ± 1.0
Unsaturated Impurities (ppm by weight)	40 maximum
Acidity ppm by weight	1 ppm max
Water content ppm by weight	10 ppm Maximum
Halides ppm by weight	3 ppm Maximum
Evaporation Residue by weight	10 ppm w/w Maximum
Non absorbable gases % by volume (vapour phase)	1.5% Maximum
